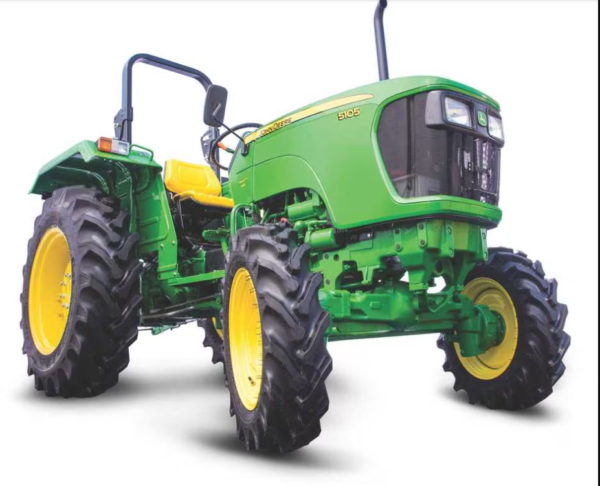

John Deere 5105

John Deere

5105

40HP, 2100 RPM

Type John Deere 3029D, 40 HP (29.4 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated
Air Filter Dry Type, Dual element
2 WD
Engine
Clutch Single/Dual
Gear box 8 Forward + 4 Reverse, Collarshift
Speeds Forward 2.83 – 31.07 kmph
Reverse 4.10 -14.87 kmph
Transmission
Maximum Lifting capacity 1600 kgf
3 Point Linkage Category- II
Automatic depth and draft control (ADDC)
Hydraulics
Type Independent, 6 Splines
Standard 540 @ 2100 ERPM
Power Take off
Front 6.0 x 16 (0.15 x 0.41 m), 8 PR
Rear 13.6 x 28 (0.34 x 0.71 m), 12 PR
Wheels and Tyres
Capacity 60 L
Fuel Tank
Accessories
Ballast Weights
Canopy
Canopy holder
Draw bar
Tow hook
Wagon hitch
Factory Fitted Options
Roll over protection structure (ROPS) with deluxe seat and seat belt
Type John Deere 3029D, 40 HP (29.4 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated
Air Filter Dry Type, Dual element
4 WD
Engine
Clutch Single/ Dual
Gear box 8 Forward + 4 Reverse, Collarshift
Speeds Forward 2.84 – 31.70 kmph
Reverse 3.74 – 13.52 kmph
Transmission
Maximum Lifting capacity 1600 kgf
3 Point Linkage Category- II
Automatic depth and draft control (ADDC)
Hydraulics
Type Independent, 6 Splines
Standard 540 @ 2100 ERPM
Power Take off
Front 8.0 x 18 (0.20 x 0.46 m), 8 PR
Rear 13.6 x 28 (0.34 x 0.71 m), 12 PR
Wheels and Tyres
Capacity 60 L
Fuel Tank
Accessories
Ballast Weights
Canopy
Canopy holder
Draw bar
Tow hook
Wagon hitch
Factory Fitted Options
Roll over protection structure (ROPS) with deluxe seat and seat belt
Dual clutch
