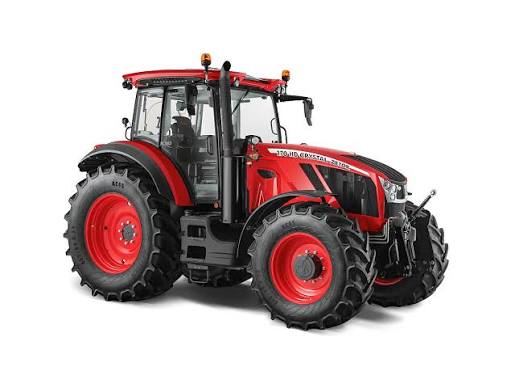

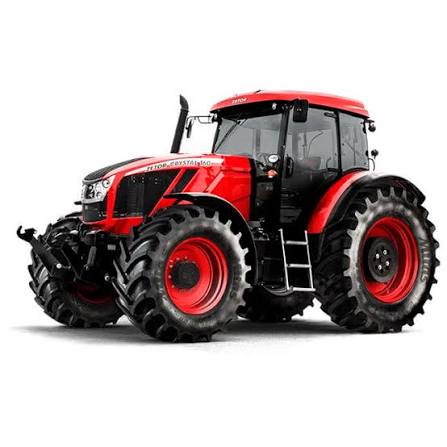

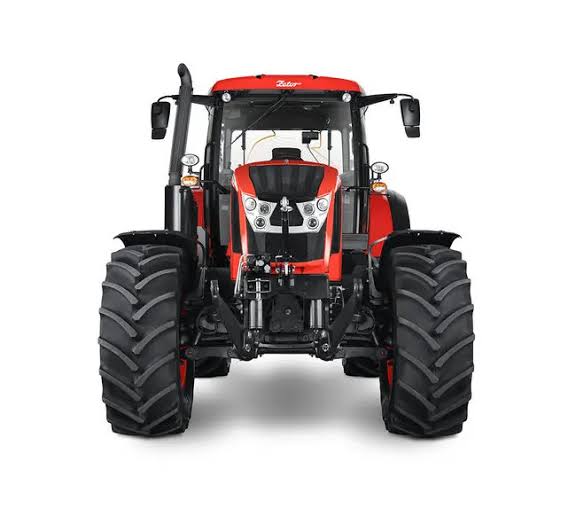

Zetor Crystal HD 170
The Zetor Crystal HD 170 is the flag-ship, heavy-duty utility tractor manufactured by Zetor Tractors. It serves as the largest, most powerful model in the brand’s machine portfolio. Engineered specifically for mid-to-large-scale farming operations, it pairs a robust six-cylinder powertrain with straightforward mechanic-friendly controls and high-capacity lifting hardware
⚙️ Engine & Powertrain Performance
-
- Engine Model: Armed with a 6.1-liter, 6-cylinder Deutz TCD 6.1 L6 turbocharged engine.
- Horsepower Rating: Generates a maximum output of 171 horsepower (127.5 kW).
- Torque Capacity: Delivers up to 739 Nm of maximum torque to handle high-resistance pulling tasks.
- Emission System: Features a modern Common Rail injection system alongside SCR (urea) and a diesel particulate filter.
- Fuel Efficiency: Optimized engine configuration yields up to an 18% reduction in fuel consumption over older design generations.
🔄 Transmission & Hydraulics
-
- Gearbox Configuration: Employs a robust, user-friendly ECO 40 semi-powershift transmission system.
- Speed Range: Operates with 30 forward and 30 reverse gears, achieving transport speeds up to 40 km/h.
- Hydraulic Pump: Built with a reliable Bosch open-center hydraulic layout yielding responsive implement operations.
- Lifting Force: Rear Category III three-point hitch architecture achieves an impressive lifting performance of up to 85 kN.
- HitchTronic Automation: Includes an automatic rear hitch regulatory system that measures soil resistance to self-adjust tool depth.
🚜 Chassis & Operations Hardware
-
- Total Weight: Operates at a substantial base curb weight of 5.76 metric tons for maximum ground traction.
- Suspended Axle: Outfitted with a premium suspended front Carrera axle that dampens bumps during high-speed road travel.
- Pneumatic Brakes: Configured with standard multi-disc wet brakes and air brakes integrated with an ABS system.
- PTO Speeds: Standard independent rear power take-off provides flexible 540 / 540Eco / 1000 / 1000Eco rotation profiles.
🏢 Cabin Comfort & Ergonomics
- Sound Insulation: Constructed with a well-insulated, quiet cabin shell to minimize operating fatigue.
- Control Layout: Styled with straightforward, functional panels containing integrated joysticks, engine memory switches, and timing spools.
- Climate Control: Equipped with factory air conditioning alongside an integrated glass roof hatch for air circulation.
