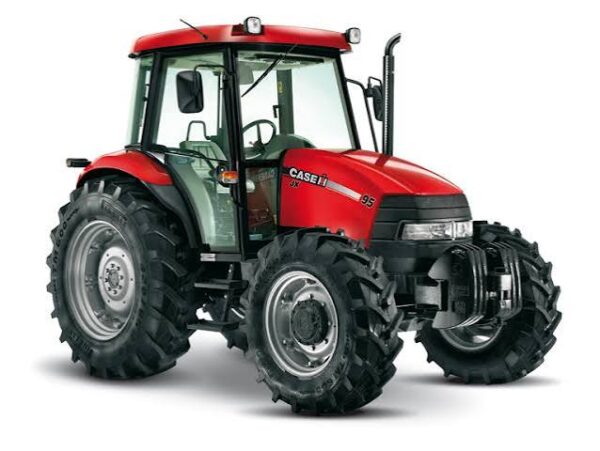

Case JX80

Technical Specifications

• Engine Power: 72 horsepower (53.7 kW) engine.
• PTO Power: 62 horsepower rated at 540 RPM.
• Engine Type: 3.2L 4-cylinder FPT turbocharged diesel.
• Drive System: Available in both 2WD and MFWD (4WD) configurations.
• Transmission: 12-speed synchronized mechanical shuttle with 4 gears and 3 ranges.
• Hydraulics & Hitch: Dual rear remotes with a Category 1 & 2 three-point hitch.
• Lift Capacity: 5,025 lbs (2,279 kg) at 24 inches.
• Operating Weight: Roughly 6,362 lbs to 6,915 lbs depending on layout and cab options.

• Key Features

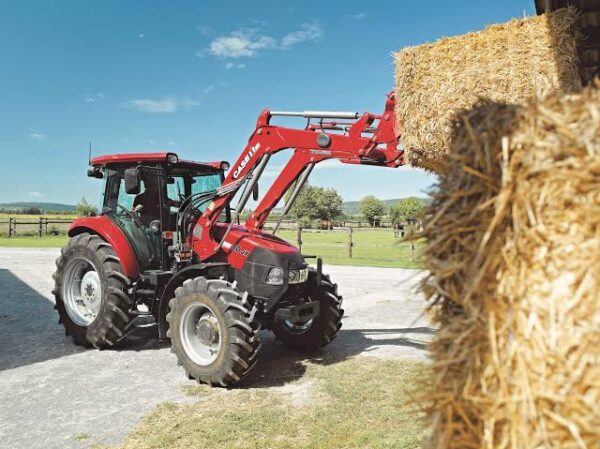

  • Versatility: Built to handle front-end loaders, row crop work, and hay baling.
  • Configuration: Sold with either an open-station platform (ROPS) or a climate-controlled cab with heating and air conditioning.
  • Maintenance: Mechanical design offers simple servicing without overly complex electrical components
