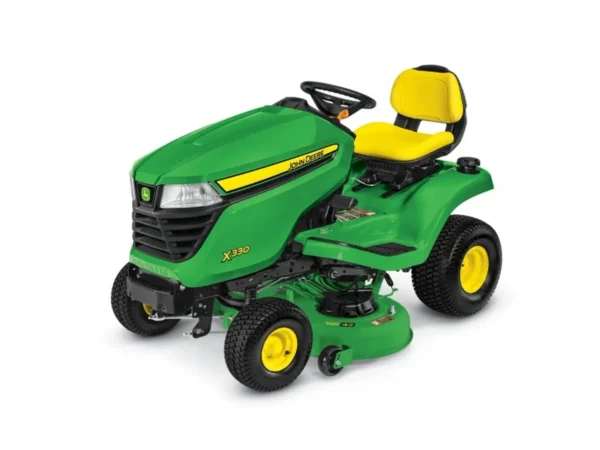

JOHN DEERE X330
The X330 Select Series™ Riding Lawn Tractor is built to work as hard as you do, all year long. Mow, mulch, haul, and bag your way through spring, summer, and fall. Then tackle winter with a front blade or snow blower for easy snow removal. With a large selection of attachments, you’ll move seamlessly between tasks without missing a beat. When work needs to be done, this is the lawn tractor that’s ready for whatever comes next.
JOHN DEERE X330 – 42-IN. DECK RIDING LAWN TRACTOR
KEY SPECS
Engine Power ………. 22.0 hp
Engine ……………. 44J6 Cyclonic
Transaxle ………….. K46 hydrostatic, integrated with transaxle
Transaxle Control …… Twin Touch™ pedals
Rear Tires …………. 20×10-8
Lift System ………… Foot pedal w/ optional adjustable spring assist kit
Cutting Width ………. 42.0 in.
Warranty …………… 4-year/300-hour bumper-to-bumper*
ENGINE
Power ……………… 22.0 hp
Displacement ……….. 44.2 cu in.
Model ……………… 44J6 Cyclonic
Type ………………. Overhead valve, full-pressure lube, oil filter
Cylinders ………….. V-twin, cast-iron liners
Governor …………… Mechanical
Choke/Speed Control …. Separate levers, automatic choke return
Cooling ……………. Air
Air Cleaner ………… Dry, replaceable
Oil Change …………. No-tools oil drain hose with replaceable filter
FUEL SYSTEM
Type ………………. Gasoline
Fuel Delivery ………. Pulse pump, carburetor
Fuel Gauge …………. Gauge on dash
Tank Location ………. Rear
Fill Opening ……….. Left fender, 3.0 in.
Tank Capacity ………. 3.3 U.S. gal.
ELECTRICAL SYSTEM
Battery ……………. 340 CCA
Charging System …….. Flywheel alternator, regulated, 14.0 amp
Starter ……………. Bendix
Hour Meter …………. Yes
Headlights …………. Two standard, incandescent, 27W
Taillights/Reflector … No
Backup/Work Lights ….. No
12-V Outlet ………… Optional
TRANSAXLE
Type ………………. K46 hydrostatic, integrated
Control ……………. Twin Touch™ pedals
Cruise Control ……… Yes, dash button
Oil Cooler …………. Fins and fan on transaxle
Oil Filter …………. Internal, not replaceable
Differential Lock …… No
Forward Speed ………. 5.5 mph
Reverse Speed ………. 4.0 mph
Brakes …………….. Internal wet disc
CHASSIS
Frame ……………… Welded heavy-duty
Primer/Paint ……….. E-coat/powder
Weight Bracket ……… Standard rear, optional front
Receiver Hitch ……… No
Front Axle …………. Cast iron, front wheel ball bearings
Front Tires ………… 15×6-6
Rear Tires …………. 20×10-8
Hood Material ………. Fully enclosed, molded-in color, reduces sound, won’t rust or dent
Fender Deck Material … Stamped steel
Floor Mats …………. Sure-grip rubber
Storage ……………. Under seat + covered toolbox
Cup Holder …………. Yes
Equipment Mounting ….. Heavy duty
Max Towing Capacity …. 600.0 lb.
STEERING
Type ………………. Manual, sector and pinion
Steering Wheel ……… 14.0 in.
Tilt Steering ………. No
Turning Radius ……… 16.0 in.
Uncut Circle Radius …. 26.0 in.
SEAT
Type ………………. Open-back design with grasp
Seat Back Height ……. 15.0 in.
Armrests …………… No
Fore-Aft Adjustment …. 6.6 in.
Suspension …………. Tilt, two coil springs, 3-position no-tools adjustment
LIFT SYSTEM
Type ………………. Foot pedal w/ optional adjustable spring assist kit
Hydraulic Outlets …… No
Cut Height Range ……. 1.0 in. – 4.0 in.
Cut Height Increments .. 0.25 in.
Preset Cut Height …… Yes
MOWER DECK
Type ………………. Side discharge
Cutting Width ………. 42.0 in.
Construction ……….. Stamped steel deck shell, 12-gauge (0.105 in.)
Wash Port ………….. Yes
Drive System ……….. Electric PTO clutch, in-line belt
Wheels …………….. Two, four-position adjustment (tool required)
Level Adjustment ……. Exact Adjust ports + onboard deck-leveling gauge
MOWER ATTACHABILITY
Type ………………. Slide under tractor
Front Draft Arms ……. Spring pins, two points
Rear Draft Arms …….. Two pins and spring clips
Drive System ……….. Single belt
SAFETY
– Meets ANSI Standard
– Meets OPEI Standard
– Reverse Implement Option (RIO) backup protection
– Safety video included
DIMENSIONS
Height …………….. 46.1 in.
Overall Length ……… 71.5 in.
Wheelbase ………….. 49.4 in.
Width w/ Mower ……… 50.5 in. (51.2 in. deflector raised)
Width w/o Mower …….. 38.0 in.
Weight …………….. 542.0 lb.
OPTIONAL EQUIPMENT
– Mowers: 42A (standard)
– Rear Bagger: 7.0 bu
– Mulching System: MulchControl™
– Front Blade: 44.0 in.
– Snow Blower: 44.0 in.
– Tow-Behind Sprayer: 25.0 gal.
– Mounted Sprayer: 25.0 gal.
– Tow-Behind Spreader: 175.0 lb.
– Mounted Spreader: 125.0 lb.
– Styled Front Bumper
– Brush Guard
– Weather Enclosure
– Sun Canopy
– Double Bucket Holder
– Lawn Striping Kit
– Tractor Shovel: 40.0 in.
– 16 Tow-Behind Tool Attachments
Manufactured in Horicon, Wisconsin, USA.
*Warranty term limited to years or hours used, whichever comes first, and varies by model.
See the full Limited Warranty for New John Deere Turf and Utility Equipment at JohnDeere.com.
